Pumpstation repair HP2500c

Some pictures showing the disassembly of the HP2500c printer, and repair of the pumpstation. The cyan and magenta spring holders were broken.

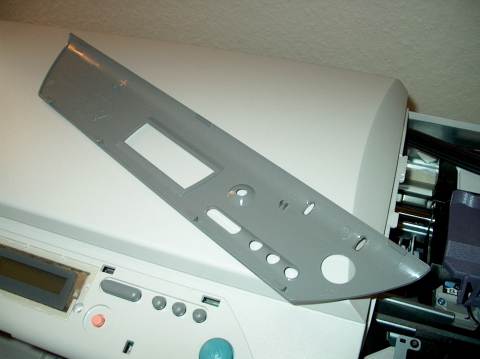

display topcover, HP2500c

Display topcover, it is clamped and have to be opened from the front.

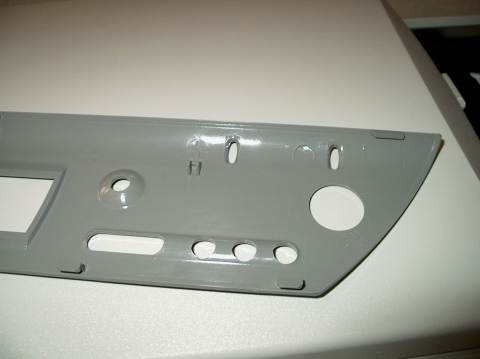

display topcover detail, HP2500c

Display topcover, showing the clamps in detail.

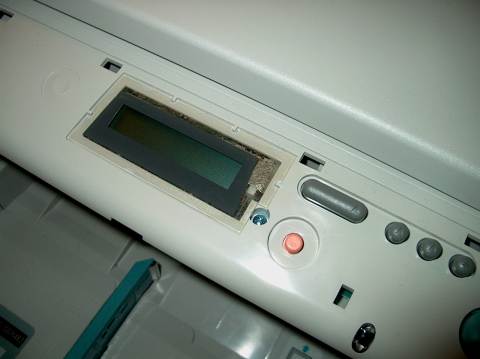

display frame screw 1, HP2500c

The 1 of the 2 screws in the display frame.

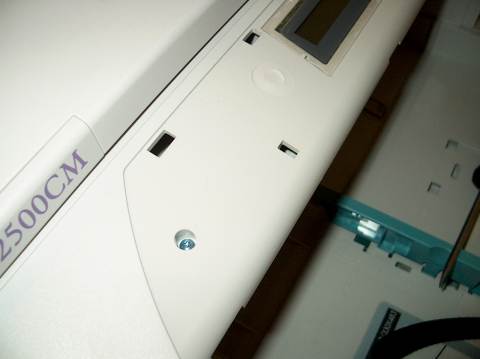

display frame screw 2, HP2500c

The 2 of the 2 screws in the display frame.

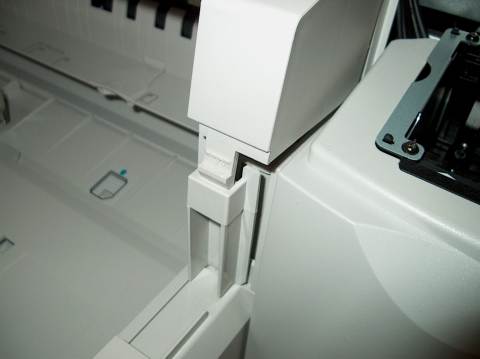

display frame right clamp, HP2500c

Display frame right clamp.

display frame left clamp, HP2500c

Display frame left clamp

display frame back clamps, HP2500c

Display frame back clamps

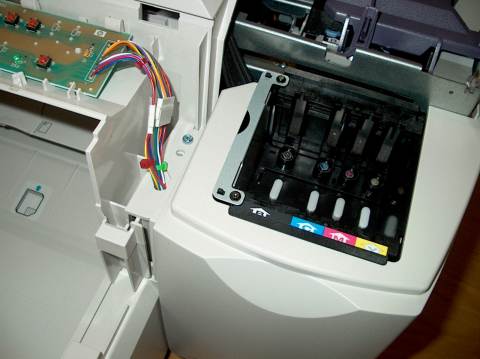

pumpstation top view, HP2500c

Pumpstation top view, pumpstation cover screw in the middle of the picture.

display spring, HP2500c

Display spring, make sure it is in the rigth position before the display frame is mounted again.

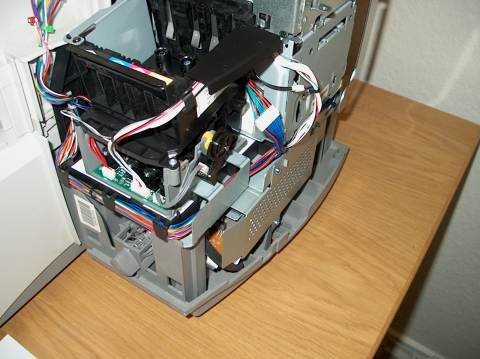

pumpstation and ink cartridge holder, HP2500c

Pumpstation and ink cartridge holder

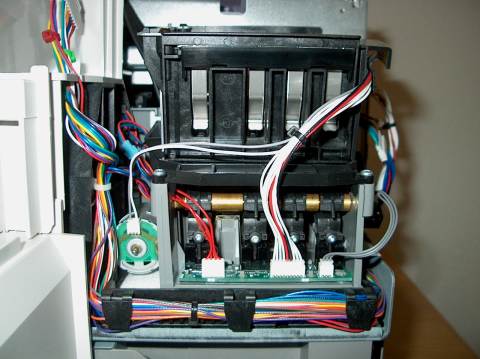

pumpstation front view, HP2500c

Pumpstation and ink cartridge holder front view

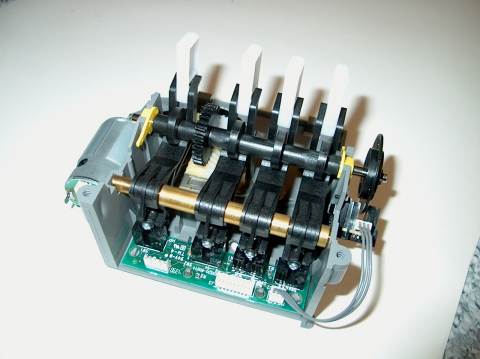

pump assy without ink cartridge holder, HP2500c

Pump assy without ink cartridge holder

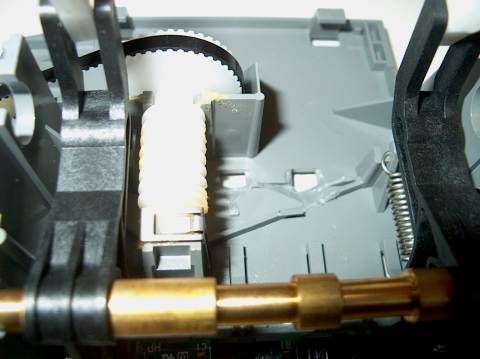

Pump bottom plate, with the broken structure, HP2500c

Pump bottom plate, with the broken structure.

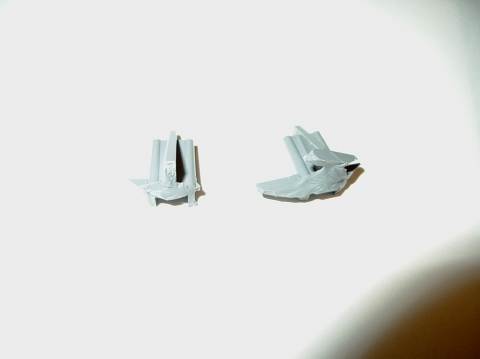

Pump spring holders, broken off the bottom plate, HP2500c

Pump spring holders, broken off the bottom plate.

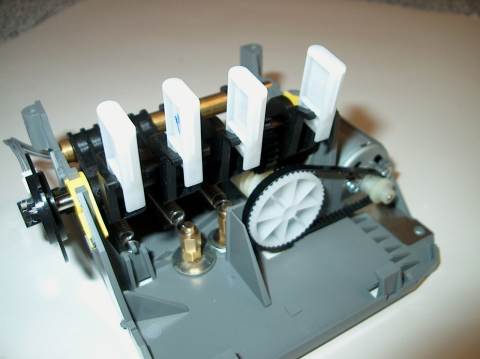

pump bottom plate with 2 screws as replacement spring holders, HP2500c

Pump bottom plate with 2 screws as replacement spring holders.

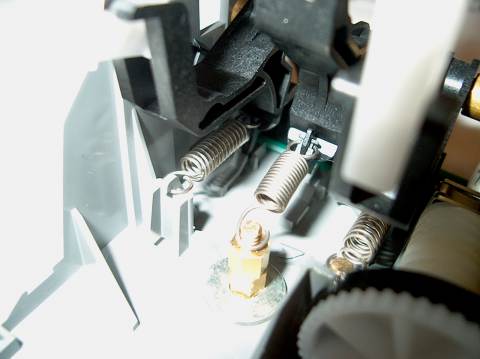

pump bottom plate with 2 screws as replacement spring holders, detail, HP2500c

Pump bottom plate with 2 screws as replacement spring holders, detail.
